Durable KC/KX/SC Thermocouple Wire with Fiberglass Insulation for High-Temperature Applications
- Product Details
Key attributes
Industry-specific attributes
Application
Temperature sensor wire
Conductor Material
Other
Conductor Type
Solid
Insulation Material
Other
Rated voltage
/
Other attributes
Place of Origin
Jiangsu, China
Brand Name
DZX
Model Number
K type
Type
insulated
Product name
Thermocouple Extension Wire
Color
Customer's Requirement
Conductor
NiCr
Material
NiCr
Keyword
Thermocouple Extension Wire
Size
Customized Size
MOQ
100Meter
Usage
Electronic Appliances
Length
Customized Length
Delivery time
15~20days
Packaging and delivery
Packaging Details

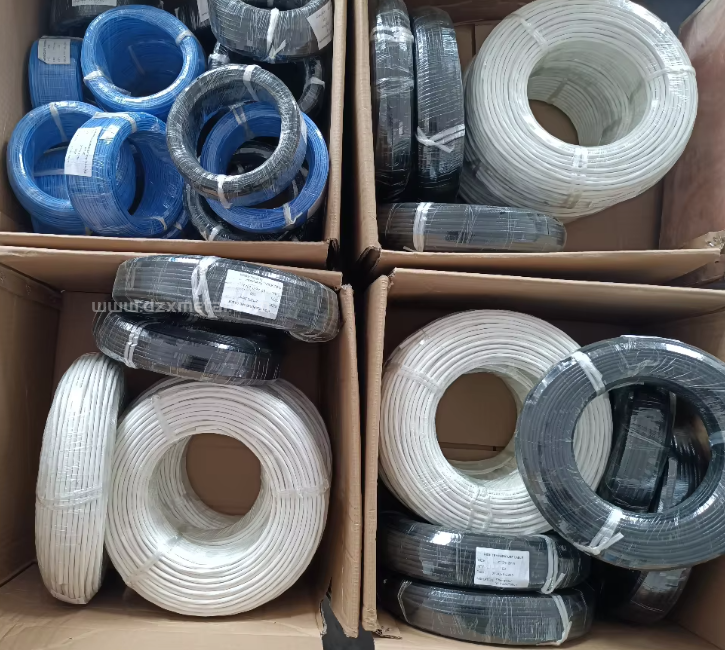

Plastic film or waterproof woven bag inside, wire packed in spool put into carton,coil wire or strip wire put into wooden case
Port
ShangHai NingBo Customized
Selling Units:
Single item
Single package size:
25X25X12 cm
Single gross weight:
2.000 kg
Supply Ability
Supply Ability
1000000 Meter/Meters per Month

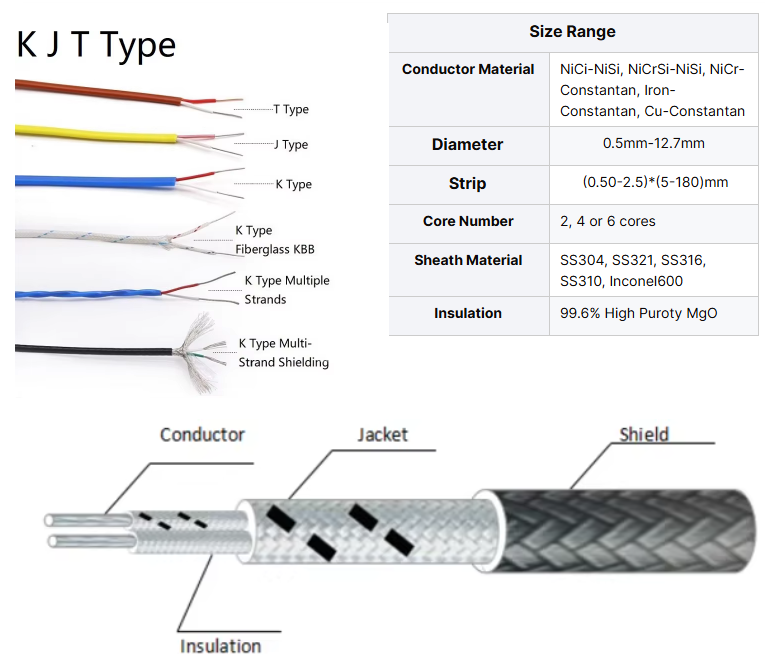

Thermocouple extension and compensating cables are designed for interconnection between thermocouple probes and control instrumentation. They are generally available in the following types. Type (1) Unarmoured cables with conductors insulated with PVC and twisted together in pairs, sheathed overall with PVC. Type (2) Armoured cables with conductors insulated with PVC and twisted together in pairs, PVC bedding, Galvanised steel wire armour and sheathed overall with PVC. Type (3) Lead sheathed and armoured cables with conductors insulated with PVC and twisted together in pairs, PVC bedded, Lead alloy sheathed, PVC bedded, galvanised steel wire armour and sheathed overall with PVC. All of the above types of cable can be supplied unscreened or screened (Individually, collectively or both) with an Aluminium / Polyester tape screen incorporating tinned copper drain wires. Alternative insulation and sheathing materials can also be used, details available upon request. DLX mainly manufacture type KX,NX,EX,JX,NC,TX,SC/RC,KCA,KCB and W-RE compensating wire for thermocouple, and they are used in temperature measurement instruments and cables. Our thermocouple compensating products are all made abiding by GB/T 4990-2010 and also IEC584-3.
Insulation materials: Use of temperature
PV : -25～70℃ , -25～105℃ FEP ：-60～205℃ PFA ：-60～260℃
Type | Usage Classification | Measuring junction temperature/℃ | Standard EMF value/μV | General level | Lenght | |||
Tolerance μV | Thermal EMF range μV | Tolerance μV | Thermal EMF range μV | |||||
SCorRC | G | 100 | 646 | ±30 | 616-676 | 586-706 | 500 | |
H | 100 | - | - | ±60 | 586-706 | 300 | ||
200 | 646 | - | - | 1.381~1501 | 200 | |||
KX,KCA or KCB | G | -25 | -968 | ±40 | -924~-1012 | ±80 | -1936 | 200 |
100 | 4096 | ±40 | 4052~4140 | 4008~4184 | 180 | |||
H | -25 | -968 | ±40 | -924~-1012 | ±88 | -1936 | 80 | |
100 | 4096 | 4052~4140 | 4008~4184 | 75 | ||||
200 | 8138 | 8094~8182 | 8050~8226 | 70 | ||||
NX or NC | G | -25 | -646 | ±43 | -1292 | ±86 | -1292 | 40 |
100 | 2774 | 2731~2817 | 2688~2860 | 40 | ||||
H | -25 | -646 | ±43 | -1293 | ±86 | -1292 | 30 | |
100 | 2774 | 2731~2817 | 2688~2860 | 30 | ||||
200 | 59123 | 5870~5956 | 5827~5999 | 20 | ||||
EX | G | -25 | -1432 | ±81 | -2864 | ±138 | -2864 | 10 |
100 | 6319 | 6238~ 6400 | 6181~6 457 | |||||
H | -25 | -1432 | ±81 | -2864 | ±138 | -2864 | ||
100 | 6319 | 6238~6400 | 6181~6457 | |||||
200 | 13421 | 13340~13502 | 13283~13559 | |||||
JX | G | -25 | -1239 | ±62 | -2478 | ±123 | -2478 | |
100 | 5269 | 5207~5331 | 5146~5392 | |||||
H | -25 | -1239 | ±62 | -1478 | ±123 | -2478 | ||
100 | 5269 | 5207~5331 | 5146~5392 | |||||
200 | 10779 | ±62 | 10717~10841 | ±123 | 10656~10902±1℃or±1.5%t | |||
TX | G | -25 | -940 | ±30 | -910 970 | ±60 | -1850 | |
100 | 4279 | 4249~4309 | 4189~4339 | |||||
H | -25 | -940 | ±48 | -1880 | ||||
100 | 4279 | 4231~4327 | ||||||
200 | 9288 | 9240~9336 | ||||||
