Hot Sale PVC Fibergladd Shield Type K Kx Kc Thermocouple Compensation Extension Wire
- Product Details
Specifications
| Model NO. | K, E, J, T, N, B, R, S |
| Conductor Material | Nickel, Chromel |
| Insulation Material | Bare |
| Range of Application | Temperature Measurement |
| Certification | ISO9001, RoHS |
| Specification | 0.10-8mm |

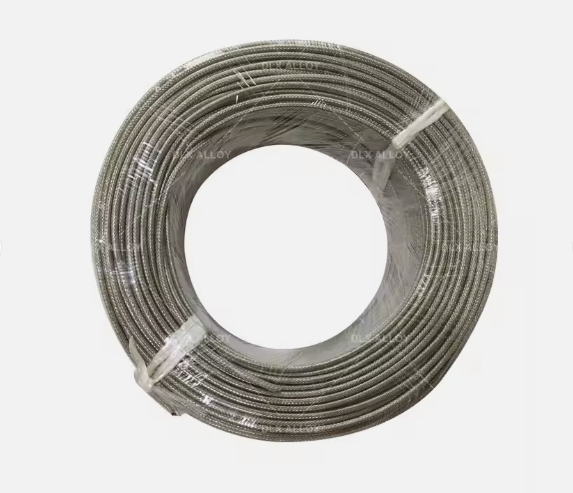

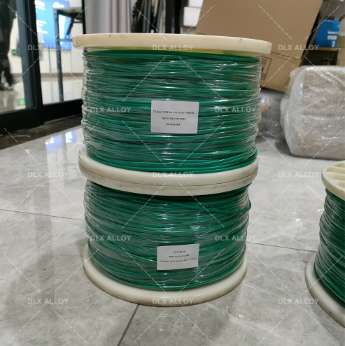

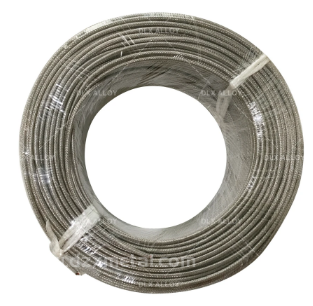

| Transport Package | DIN Spool, Carton, Wooden Case |
| HS Code | 7505220000 |
Description

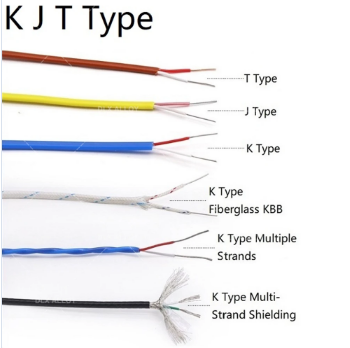

PVC fiberglass shielded K-type Kx Kc thermocouple compensation extension wire is a special type of compensation wire with the following characteristics:
Material: These compensating extension cords are usually made of PVC (polyvinyl chloride) material and may also be wrapped with fiberglass shielding to improve electromagnetic compatibility and interference immunity.

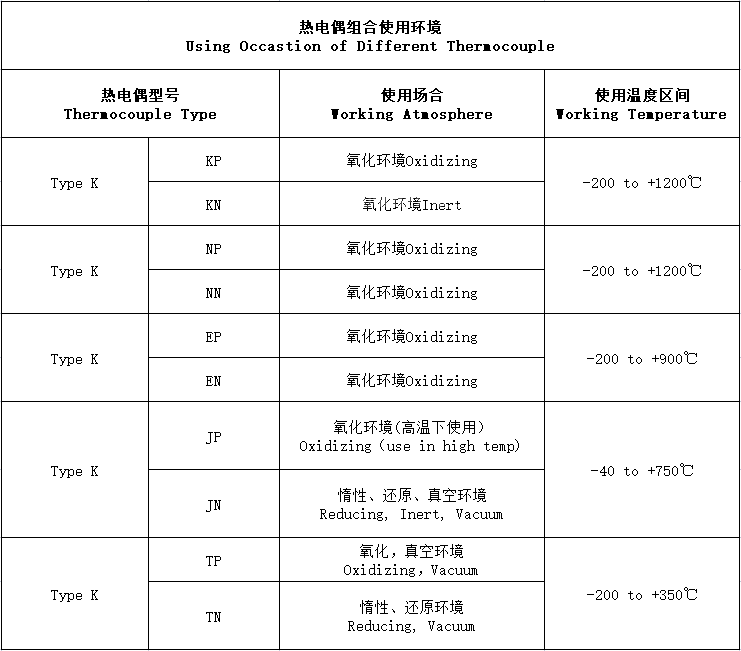

Temperature range: Type K thermocouple is a commonly used general-purpose thermocouple with a wide operating temperature range, usually -200°C to +1250°C. Kx and Kc are specific types of extended compensation wires whose materials and thermoelectric properties are the same or similar to type K thermocouples.
Compensation function: The compensation extension wire can compensate for the error caused by changes in ambient temperature at the cold end of the thermocouple. This is essential to improve the
accuracy and reliability of temperature measurements.
Extension function: The extension cord can extend the cold end of the thermocouple from a high-temperature area to a low-temperature area (such as a control room), allowing temperature
measurement in environments where direct installation of thermocouples is not suitable.
Positive and negative polarity: When connecting the compensation extension cable, you must ensure that the positive and negative poles of the thermocouple are connected correctly to avoid
measurement errors.

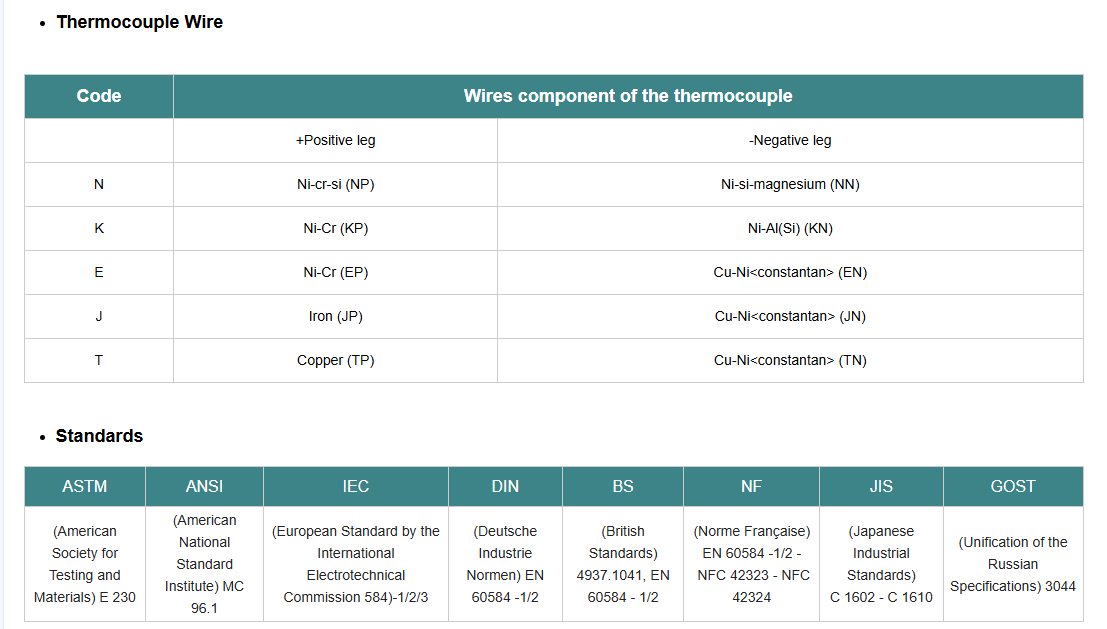

Model identification: Such as KX, KC and other identifications, which represent the type of thermocouple and the characteristics of the compensation line. Selecting the correct type of compensating
extension cord is critical to ensuring the performance of your thermocouple system.
Application scenarios: This type of product is widely used in industrial temperature monitoring and control systems, especially where remote transmission of temperature signals is required.
About Us：
Jiangsu DZX Technology Co,Ltd. is a professional engaged in the electric heater design, manufacture and sales of integrated entity enterprise, has over 20 years experience in electric heater of scientific research and production.Our main product is heating resistance wire. heater elements and thermocouple series products
Enterprise has core technology advantage and introduce advanced technology and management concept, in accordance with the 1s09001 quality management requirements, strict control of raw materials quality,perfect detection means, with first-class technology,reliable quality and excellent service to win customers praise and praise.
FAQ
What is your working time?
Monday-Friday : 8:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls e-mail us during our holiday if u have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 15 days after payment has been confirmed.
