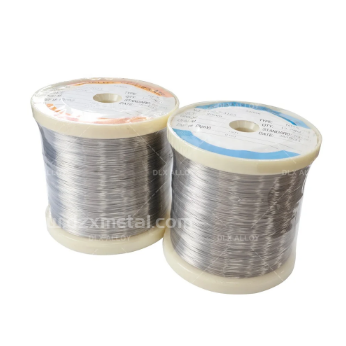

IEC60584 Class I Chromel Alumel Kp-Kn Type K Thermocouple Bare Wire for Extension Cable
- Product Details
Basic Info.
| Model NO. | Type K Thermocouple wire |
| Conductor Material | Nickel, Chromel |
| Insulation Material | Bare |
| Range of Application | Temperature Measurement |
| Grade | Type K |
| Surface | Bright,Oxidized |
| Specification | 0.10-8mm |
| Transport Package | DIN Spool, Carton, Wooden Case |
| Certification | ISO9001, RoHS |
| HS Code | 7505220000 |
Product Description
Thermocouple wire is used in a thermocouple from the sensing point to the cold junction compensation point (or reference point).
It is the difference in the millivolt output from the sensing point to the reference point that provides the temperature
measurement.

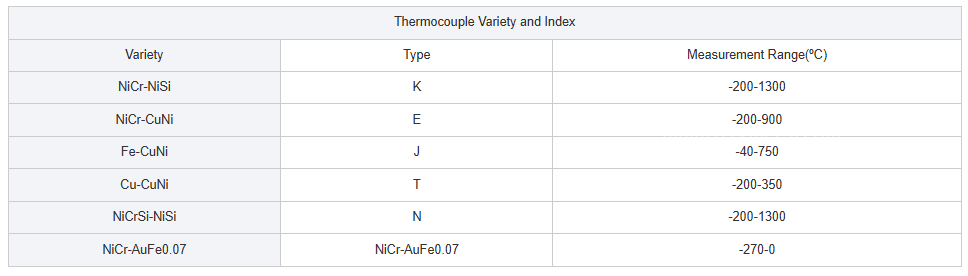

Different thermocouple types require different alloy wire combinations. Some of the more popular thermocouple wire & cable types include type E (Chromel/Constantan), Type J (Iron/Constantan), Type K (Chromel/Alumel), and type T (Copper/Constantan).
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.

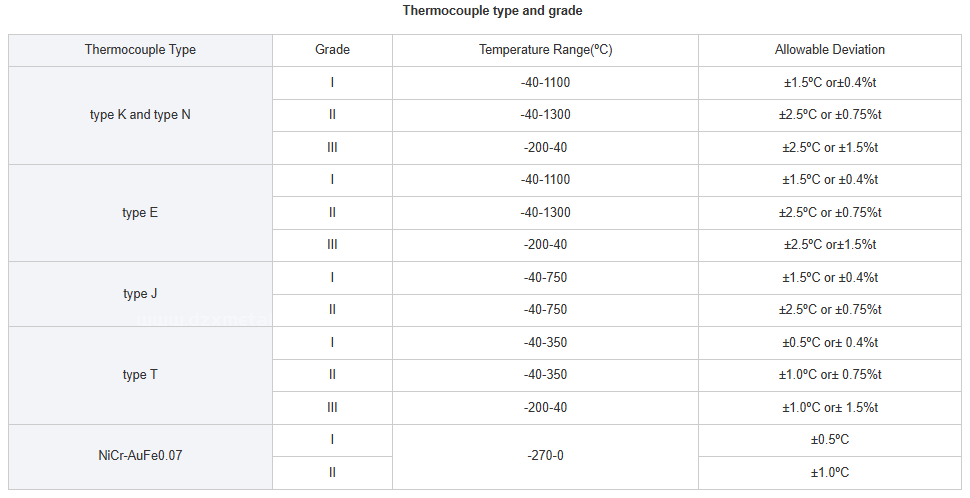

Calibration Type Characteristics
TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at
temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.
TYPE K (CHROMEL vs ALUMEL) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.
TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizing atmospheres. Produces the highest EMF per degree o any standardized thermocouple.
It is the difference in the millivolt output from the sensing point to the reference point that provides the temperature
measurement.
Different thermocouple types require different alloy wire combinations. Some of the more popular thermocouple wire & cable types include type E (Chromel/Constantan), Type J (Iron/Constantan), Type K (Chromel/Alumel), and type T (Copper/Constantan).
Thermocouple wire or extension grade wire is recommended to be used to connect thermocouples to the sensing or control instrumentation. The conditions of measurement determine the type of thermocouple wire and insulation to be used. Temperature range, environment, insulation requirements, response, and service life should be considered.
Calibration Type Characteristics
TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at
temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures.
TYPE K (CHROMEL vs ALUMEL) is used in oxidizing, inert or dry reducing atmospheres. Exposure to vacuum limited to short time periods. Must be protected from sulfurous and marginally oxidizing atmospheres. Reliable and accurate at high temperatures.
TYPE T (Copper vs Constantan) is used or service in oxidizing, inert or reducing atmospheres or in vacuum. It is highly resistant to corrosion from atmospheric moisture and condensation and exhibits high stability at low temperatures. It is the only type with limits of error guaranteed for cryogenic temperatures.
TYPE E (CHROMEL vs Constantan) may be used in oxidizing, inert or dry reducing atmospheres, or for short periods of time under vacuum. Must be protected from sulfurous and marginally oxidizing atmospheres. Produces the highest EMF per degree o any standardized thermocouple.
Thermocouple bare wire is used at temperatures up to 1260°C (2300°F). MICC thermocouple bare wire is supplied with bright or oxidized surface according to standard or special EMF requirements.
Each individual lead is calibrated against platinum and the EMF values are shown on each coil or spool.

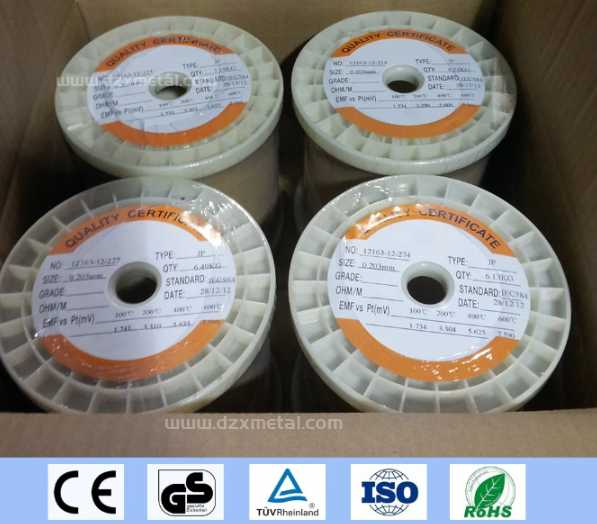

Packaging & Shipping
Company Profile
Jiangsu DZX Technology Co,Ltd. is a professional engaged in the electric heater design, manufacture and sales of integrated entity enterprise, has over 20 years experience in electric heater of scientific research and production.Our main product is heating resistance wire. heater elements and thermocouple series products
Enterprise has core technology advantage and introduce advanced technology and management concept, in accordance with the 1s09001 quality management requirements, strict control of raw materials quality,perfect detection means, with first-class technology,reliable quality and excellent service to win customers praise and praise.
FAQ
What is your working time?
Monday-Friday : 8:30AM-17:00PM (Beijing time, GMT+08.00)
We have public holiday during May.1-3, Oct.1-7 and Chinese New Year holiday . Pls e-mail us during our holiday if u have any questions.
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,MoneyGram,Paypal
What is the lead time?
Usually sample lead time is 15 days after payment has been confirmed.
