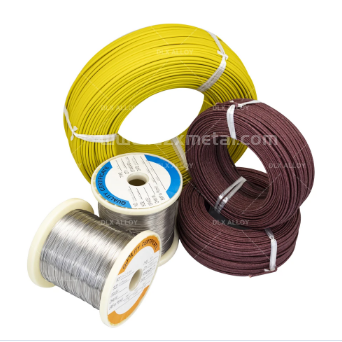

Temperature Measuring -200 to 1400c, Type K/T/J/N Thermocouple Bare Wire
- Product Details
Basic Info.
Model NO.
Type K
Conductor Material
Nickel, Chromel
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Temperature Measurement
Certification
ISO9001, RoHS
Brand
DZX
Customization
Available
Temperature Range
500 to 1400c
Lead Time
7 Days
Types
K/J/N/T
Transport Package
DIN Spool, Carton, Wooden Case
Specification
0.10-8mm
Production Capacity
150tons/Year
Origin
Jiangsu, China
Packaging & Delivery
Positive leg(KP leg) is universally known as Ni90Cr10 or Chromel.
Negative leg( KN leg) is universally known as Alumel or NiAlCo/ NiSi3

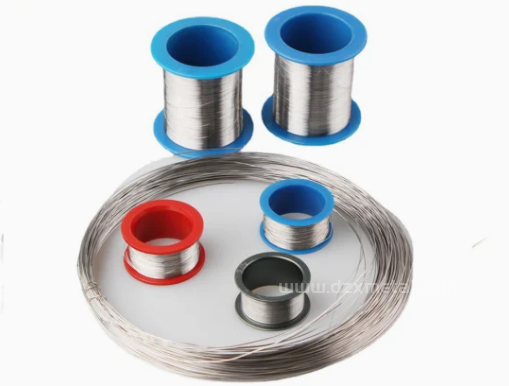

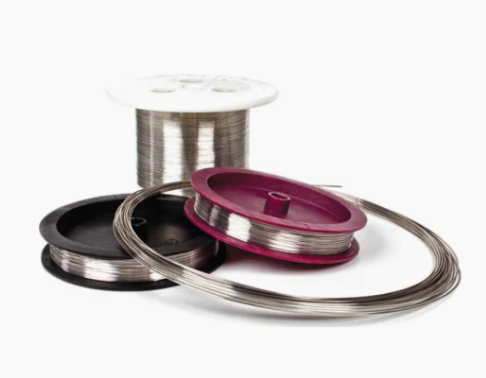

Thermocouple wire Type K is supplied in the form of bare wire with dimension from 0.1mm to 8.0mm
For oxidised wires the available dimensions are 1.2 to 8mm.
Thermocouple wire can also be supplied in the form of stranded wire.

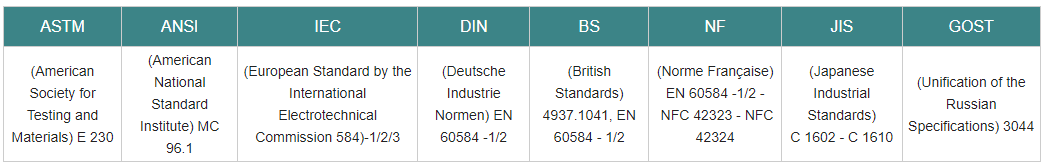

Products quality confirm to Standard:
IEC 584-1/2/3
ANSI MC 96.1
ASTM E230
DIN EN 60584-1/2
NF EN 60584-1/2-NFC 42323-NFC 42324
UNI UNI-7938
JIS C1602-C 1610
GHOST 3044
Thermocouple Wire
Type K Thermocouple (Nickel-Chromium / Nickel-Alumel): The type K is the most common type of thermocouple. It's inexpensive, accurate, reliable, and has a wide temperature range. The type K is commonly found in nuclear applications because of its relative radiation hardness. Maximum continuous temperature is around 1,100C.
