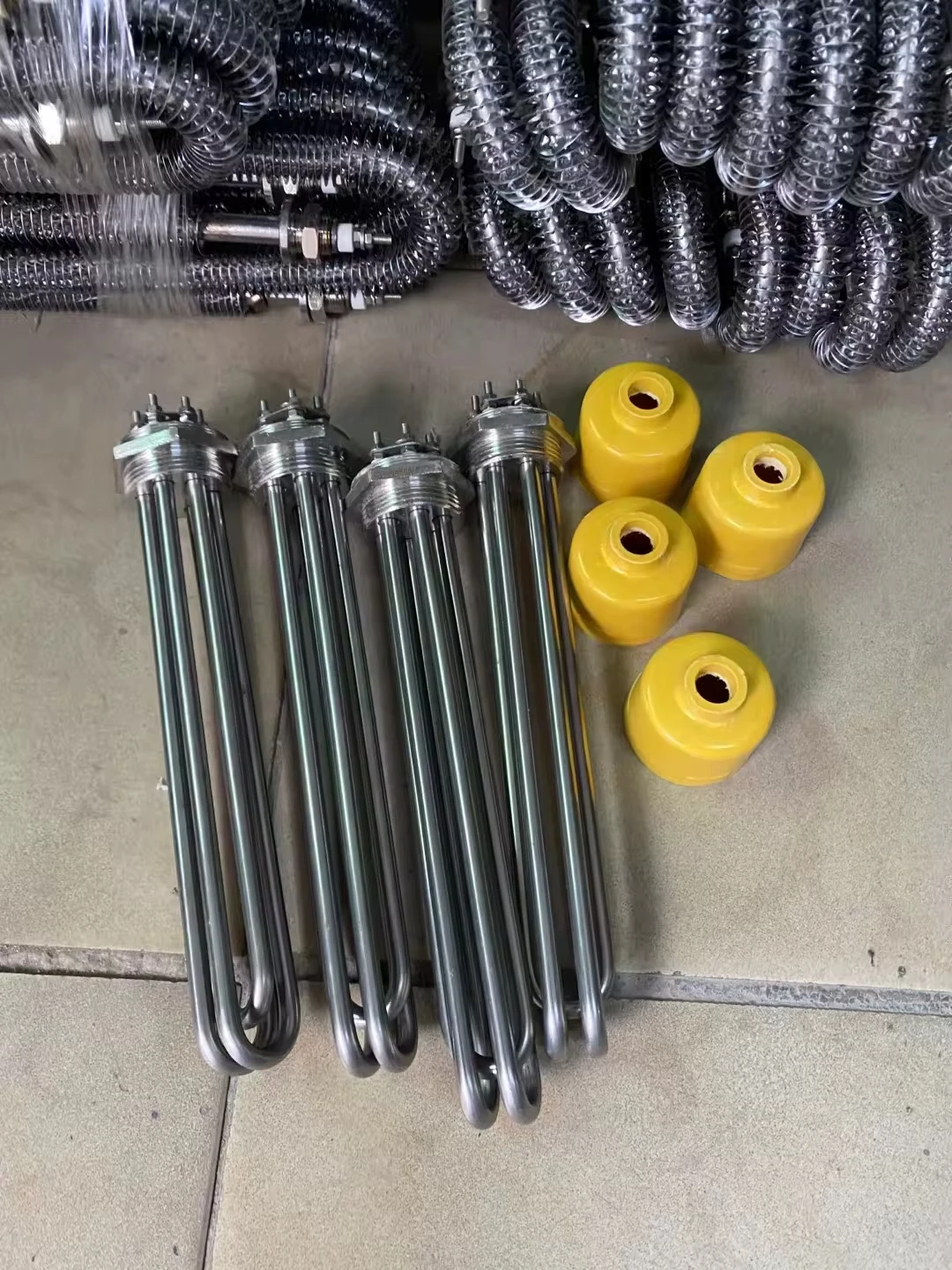

240v High Power Density Electric Flange Immersion Heater For Water Heating
- Product Details
A number of heating pipes are welded or screwed to a flange to form a high-power electric heat pipe that can be disassembled as a whole. It is often used in large water tanks, boilers, heat conduction oil furnaces and other heating places In the raw material, choose SUS304 or SUS316 thickened stainless steel, high temperature resistance wire and high temperature insulation.Designed to reduce the heating tube surface load, can be heated in water and oil.
Flange Immersion Heaters
Songtai Immersion heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours.
Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,
our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.
Technical Specification | |||
Voltage | 110V AC up to 600V AC | ||
Wattage | Customized | ||
Immersion Length | 50mm-1000mm | ||
Sheath Material | Stainless steel 304, 316L, 310S | T2 Copper | Incoloy800, 840 |
Welded Elements QTY | 1 to 20 units or more | ||
Bult in Thermostat | Temperature range 30°C -110°C | Thermostate suitable fo Max 250V up to 16 amps | Special for Screw plug immersion heaters |
Bult in Thermowell | Thermowell hole size and length customized | ||
Terminal Cover Material | Stainless steel | Nylon | Plastic |
Screw Thread size | G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc | ||
Round Flange size | DN80 DN100 DN120 DN150 DN200 etc | ||
High Standard Material
* Pure Stainless Steel 304 or higher grade Flange or Screw plug
* Pure Stainless Steel 304 connected fittings
* High-frequency insulation ceramic for fittings
* 100% Nichrome Heating Resistance Wire
* Pure Stainless Steel or Incoloy Elements Sheath
Immersion Heater Features
* Samll Volume Large Wattage
* Powerful function for all liquid heating
* Anti-explosion or Temperature controlling custom design
*Flexible Horizontal or Vertical Installation
* Durability and Resistant Building body
Key attributes
Industry-specific attributes
Type
Immersion Heater
Power Source
Diesel
Voltage
36V DC 12V 120V 380v 220V DC 24V AC 110V
Other attributes
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Place of Origin
Jiangsu, China
Weight
5 KG
Warranty
3 months
Material
Stainless steel
Key Selling Points
Famous brand low voltage components
Condition
New
Brand Name
DZX
Working Temperature Range
0 - 500 ℃
Core Components
Other
Video outgoing-inspection
Provided
Flange & Tube Material
SS304 SS316 Copper Inconel
Size
Customized
Certificate
ROHS
MOQ
5 pcs
Delivery Time
7-20 Days
Resistance wire Material
FeCrAl & Nichrome Wire
Application
Water/Air Heating
Voltages available
220V 380V
Power
Customized
Advantage
High Speed Heating
Over the years, we have worked hard to promote and realize the modernization of alloy sales, and actively cultivated and enhanced the ability of employees' independent innovation. All-round renovation and upgrade of the original business site, facilities and equipment, and modern computer management. Hope to establish long-term partnerships and win market reputation.
We are increasing thescale of trade and customers through out the world. With our good reputation we have won the trust of our customers. It's helps the modernisation of our country and promote the economic and technical exchanges with the rest of the world. We also look forward to enhance the friendship with other countries and make positive impact.
We warmly hope that you and us together, hand in hand, create a glorious future.
DZX TECH, which is a factory for heating elements more than 22 years, we are founded in 2002, and run business with resistance alloy first. And in past 20 years, we R&D new product such as Heater Emelent , air heating and water heater elements and other alloy products.
FAQ
Q：I have sent the RFQ, when can I expect a reply?
A：We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.
Q：How long is the delivery time?
A：It depends on the order quantity ,Usually it takes about 20-30 days.
Q：Do you accept OEM/ODM manufacturing?
A：Yes! We do accept OEM/ODMmanufacturing. You could give us your samples or drawings.
Q：Can you send me your catalogue?
A：Yes, please contact us.We can share with our catalogue for you by email.
Q：How to control the products quality in your company?
A：With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
Q：Can you provide detailed technical data and drawing?
A：Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
