Factory Direct 230v Electric Rod Resistance Wire Flange Immersion Heater
- Product Details

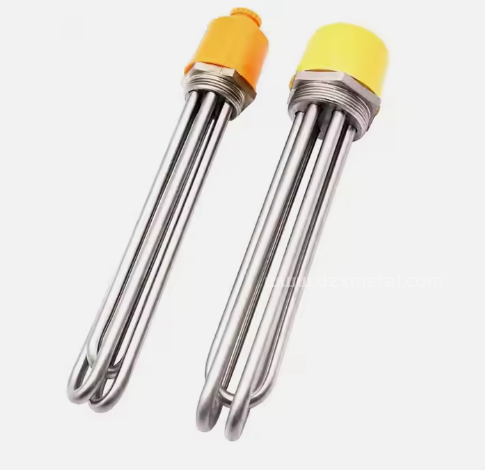

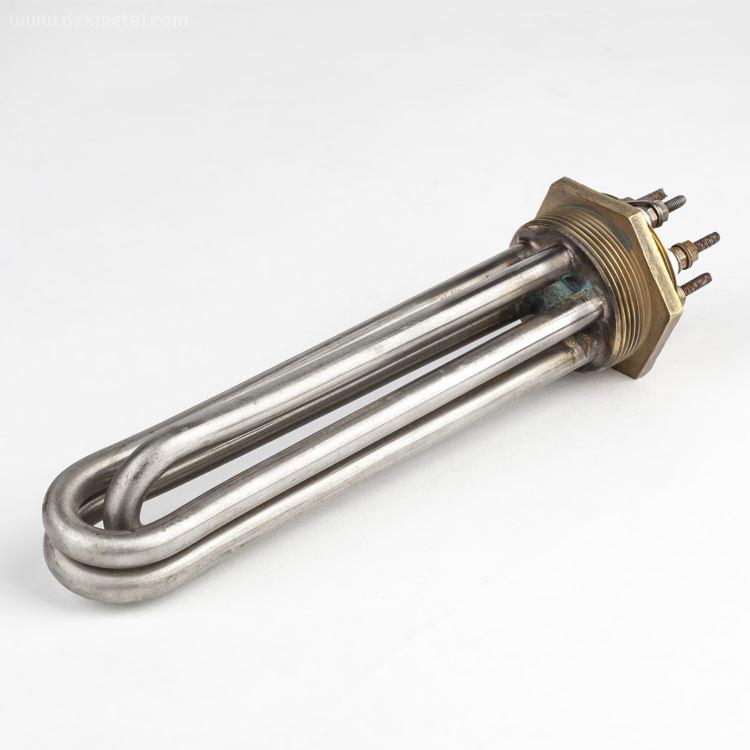

Introducing our new Flange Thread Immersion Heater s, designed for efficient heating and energy savings. Crafted from high-quality materials, these heaters ensure long-term reliability. The flange thread design facilitates easy installation and removal, suitable for various tanks and containers. With a wide range of customization options, including power, voltage, tube diameter, and plug size, we can tailor our heaters to meet your specific requirements. Ideal for industries such as oil, chemicals, food, and machinery.

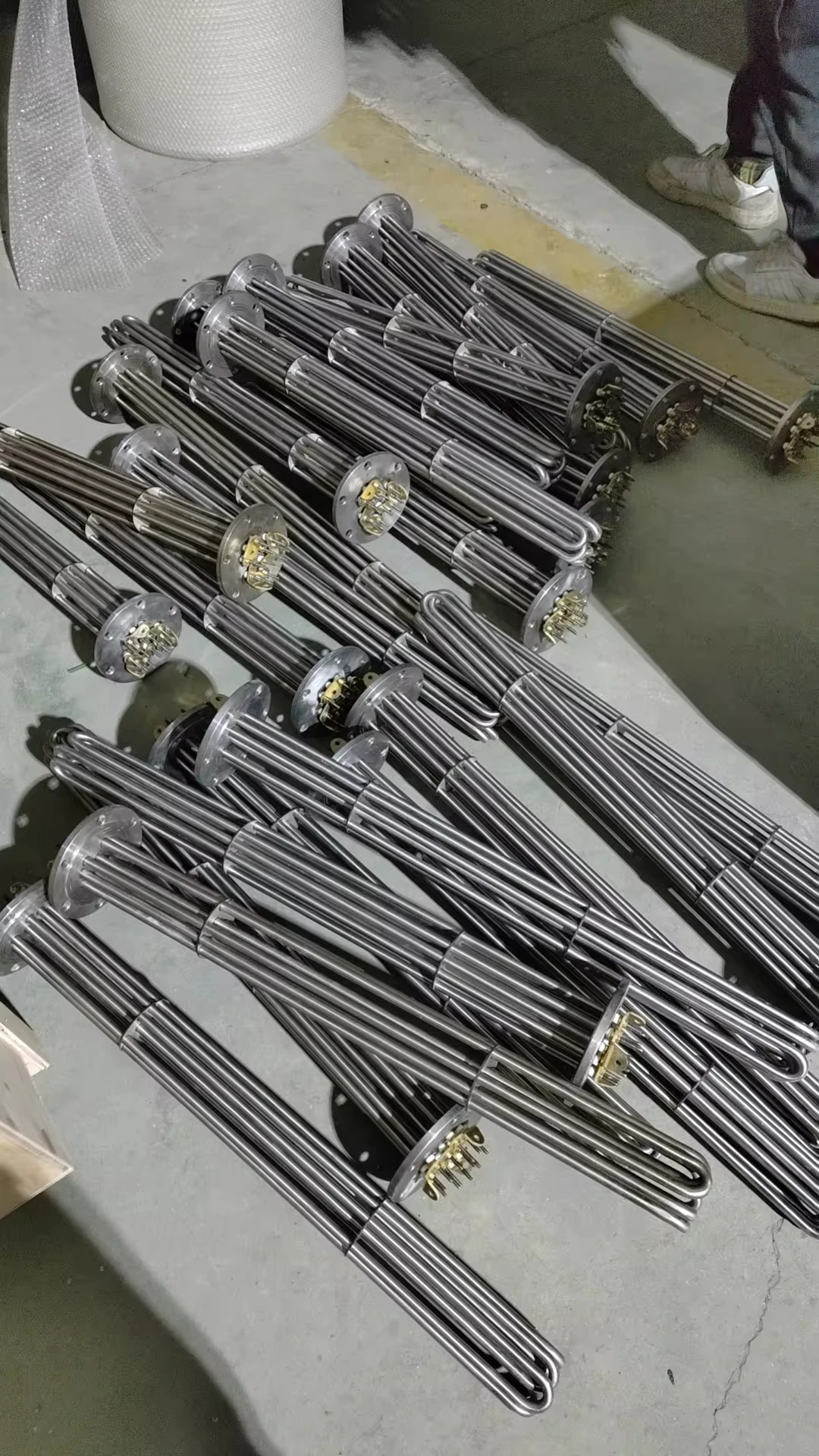

Flange Immersion Heaters
Songtai Immersion heaters are of a variety styles for multi usage. All the tube elements are made of Nichrome heating wires, sheathed by pure stainless steel or Incoloy and Insulated by 99% purity Mgo , which gurantee long life span up to 15000 hours.
Also, the mounting terminals are of flexible choices - Hexagon Screws, Flat Flange(round or Square), with Anti-explosion Box, or with Thermostat or Thermocouple hose based on customer diverse applicance. Above all,
our factory has great capacity of designing and developing special immersion heaters to meet customer personalized needs. We never cease our steps in progress and growth with customers.
Technical Specification | |||
Voltage | 110V AC up to 600V AC | ||
Wattage | Customized | ||
Immersion Length | 50mm-1000mm | ||
Sheath Material | Stainless steel 304, 316L, 310S | T2 Copper | Incoloy800, 840 |
Welded Elements QTY | 1 to 20 units or more | ||
Bult in Thermostat | Temperature range 30°C -110°C | Thermostate suitable fo Max 250V up to 16 amps | Special for Screw plug immersion heaters |
Bult in Thermowell | Thermowell hole size and length customized | ||
Terminal Cover Material | Stainless steel | Nylon | Plastic |
Screw Thread size | G / NPT / BSPP Thread 1'' 1 1/4'' 1 1/2'' 2'' etc | ||
Round Flange size | DN80 DN100 DN120 DN150 DN200 etc | ||
Industry-specific attributes
| type | Immersion Heater |
| power source | Diesel |
| voltage | 36V DC 12V 120V 380v 220V DC 24V AC 110V |
| Heating capacity | 8000Hours |
| warranty | 3 months |
| material | Stainless Steel |
| working temperature range | 0 - 500 ℃ |
| key selling points | Famous brand low voltage components |
| Temperature range | high-temperature |
| Flange & Tube Material | SS304 SS316 Copper Inconel |
| Certificate | ROHS |
| MOQ | 5 pcs |
| Delivery Time | 7-20 Days |
| Resistance wire Material | FeCrAl & Nichrome Wire |
| Application | Water/Air Heating |
| Voltages available | 220V 380V |
Over the years, we have worked hard to promote and realize the modernization of alloy sales, and actively cultivated and enhanced the ability of employees' independent innovation. All-round renovation and upgrade of the original business site, facilities and equipment, and modern computer management. Hope to establish long-term partnerships and win market reputation.
We are increasing thescale of trade and customers through out the world. With our good reputation we have won the trust of our customers. It's helps the modernisation of our country and promote the economic and technical exchanges with the rest of the world. We also look forward to enhance the friendship with other countries and make positive impact.
We warmly hope that you and us together, hand in hand, create a glorious future.
DZX TECH, which is a factory for heating elements more than 22 years, we are founded in 2002, and run business with resistance alloy first. And in past 20 years, we R&D new product such as Heater Emelent, air heating and water heater elements and other alloy products.
FAQ
Q：I have sent the RFQ, when can I expect a reply?
A：We usually quote within 24 hours after we get your inquiry. If you are urgent to get the price, please send the message on trade management or call us directly.
Q：How long is the delivery time?
A：It depends on the order quantity ,Usually it takes about 20-30 days.
Q：Do you accept OEM/ODM manufacturing?
A：Yes! We do accept OEM/ODMmanufacturing. You could give us your samples or drawings.
Q：Can you send me your catalogue?
A：Yes, please contact us.We can share with our catalogue for you by email.
Q：How to control the products quality in your company?
A：With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
Q：Can you provide detailed technical data and drawing?
A：Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
