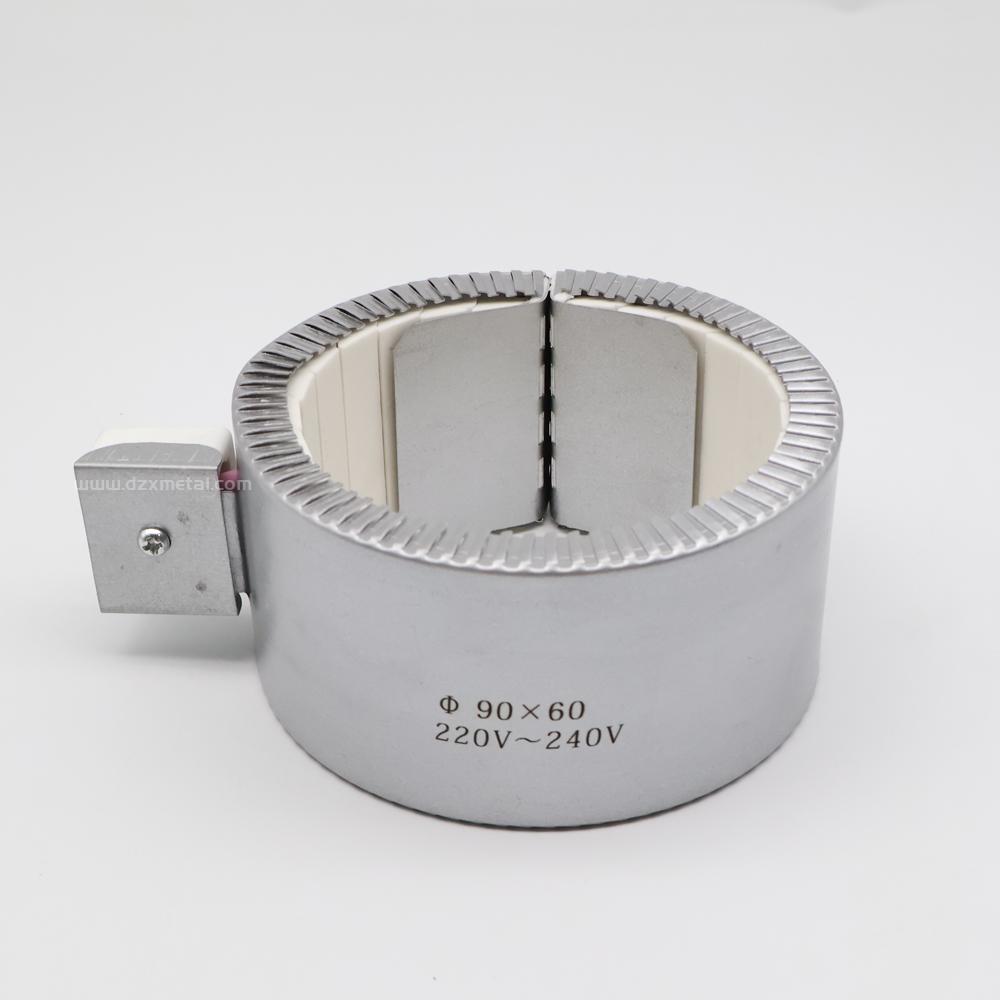

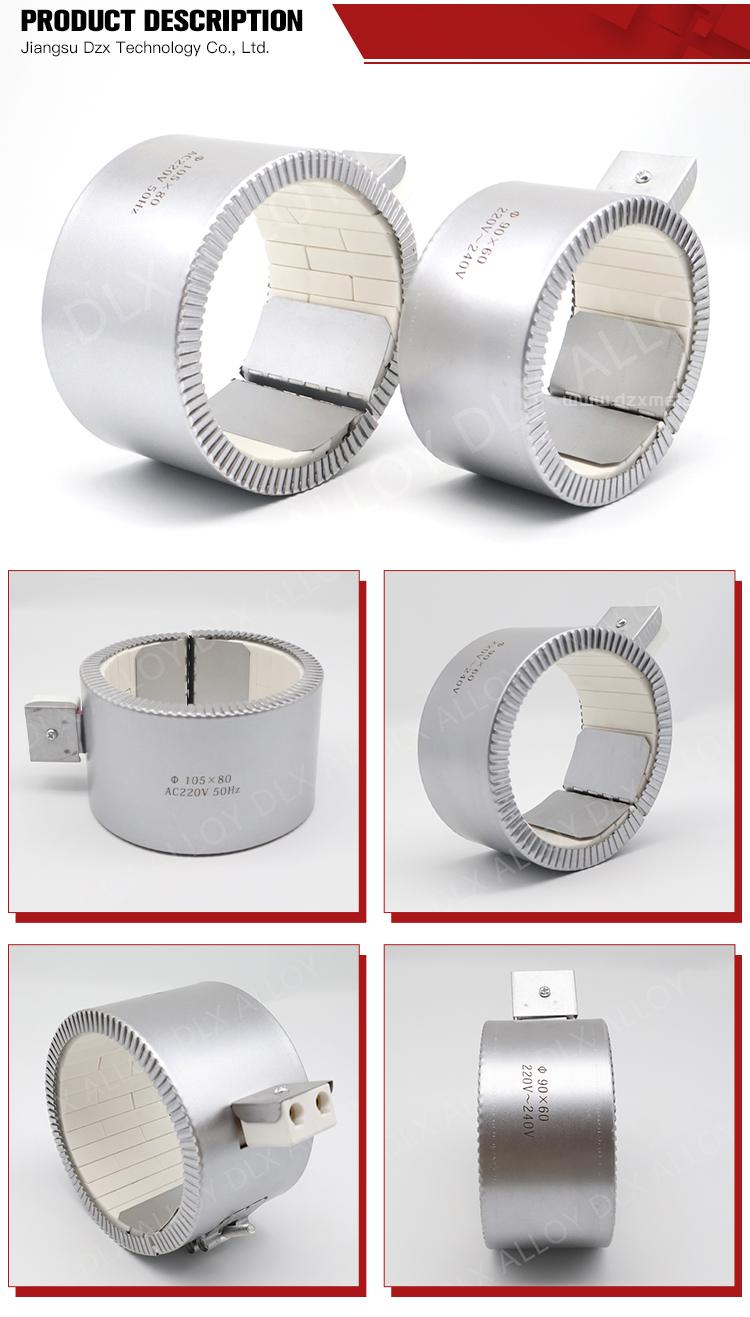

1200W Power Ceramic Heter Ring 125 ID Band Heater With Aluminum shell for Plastic Extrusion And Mold

Ceramic Heter Ring（ Ceramic Band Heater  ）

ceramic heater ring is a cylindrical heating element made from ceramic materials that incorporate embedded resistive heating elements. It’s designed to provide efficient and uniform heat in various industrial applications. The ceramic core offers excellent thermal insulation and electrical insulation, making it suitable for high-temperature environments.

Distribution Channels:

1. Direct Sales: Manufacturers often sell ceramic heater rings directly to industrial users.

2. Distributors: Specialized industrial distributors and suppliers stock and distribute ceramic heater rings.

3. Online Retailers: Available through industrial supply websites and e-commerce platforms.

Production Steps of Ceramic Band Heater Ring:

Design and Engineering:

Specifications: Define the size, shape, and electrical specifications of the ceramic band heater ring based on the application requirements.

Prototype: Create prototypes to test and refine the design.

Ceramic Core Manufacturing:

Ceramic Material Preparation: Mix ceramic powders with binders and additives.

Forming: Shape the ceramic material into a ring form using methods like extrusion or molding.

Drying and Firing: Dry the shaped ceramic core and then fire it in a kiln at high temperatures to achieve the desired hardness and thermal properties.

Heating Element Integration:

Element Placement: Insert resistive heating elements (usually made from materials like nichrome) into the ceramic core. These elements are responsible for generating heat when an electric current passes through them.

Wiring: Connect electrical leads to the heating elements for power supply.

Assembly:

Mounting: Secure the ceramic core with heating elements in a metal sheath or casing, if required, for protection and ease of installation.

Clamping or Fastening: Add clamps or fastening mechanisms to ensure the heater ring can be securely attached to the target object.

Testing:

Performance Testing: Check the heater ring for proper electrical connections, heat distribution, and temperature control.

Quality Control: Perform inspections to ensure the heater meets safety and performance standards.

Packaging and Distribution:

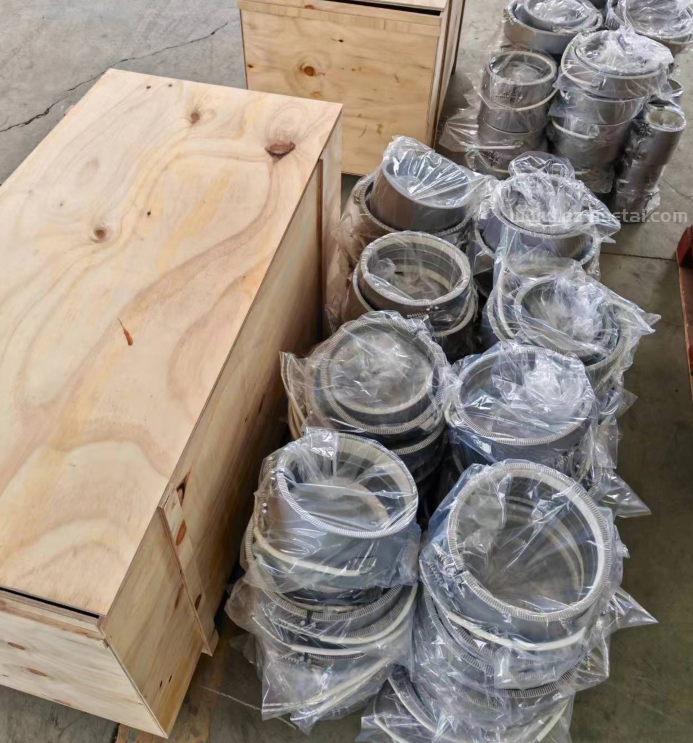

Packaging: Package the finished ceramic band heater rings to prevent damage during shipping.

Distribution: Distribute through manufacturers, industrial suppliers, or online retailers to reach end-users.

FAQ of Ceramic Band Heater Ring:

1. What is a ceramic heater ring?

A ceramic heater ring is a cylindrical heating element made from ceramic materials, with embedded resistive heating elements. It provides efficient and uniform heating for various industrial applications.

2. What are the main applications of ceramic heater rings?

They are used in plastic extrusion, injection molding, food processing, chemical reactors, rubber processing, and textile dyeing.

3. What are the advantages of ceramic heater rings?

High-Temperature Capability: Operates efficiently at high temperatures.

Uniform Heating: Provides even heat distribution.

Durability: Resists wear, corrosion, and high temperatures.

Energy Efficiency: Good thermal insulation reduces heat loss.

4. How are ceramic heater rings installed?

Clean the surface where the heater will be mounted, position the heater ring around the cylindrical object, secure it with clamps or bolts, connect the electrical leads, and test the heater for proper operation.

5. What maintenance is required for ceramic heater rings?

Regularly inspect for wear or damage, keep the heater and surrounding area clean, and periodically verify that the heater maintains the desired temperature.

6. What temperature ranges can ceramic heater rings handle?

They can typically handle temperatures up to 600°C (1112°F), but specific temperature ratings depend on the design and materials used.

7. Can ceramic heater rings be customized?

Yes, many manufacturers offer customization options for size, shape, and temperature ratings to meet specific application needs.

8. How do I choose the right ceramic heater ring?

Consider factors such as the size and shape of the object being heated, the required temperature range, and the heater’s power specifications. Consult with manufacturers or suppliers for guidance.

9. Are there safety considerations with ceramic heater rings?

Ensure proper installation to avoid overheating and electrical hazards. Follow all manufacturer safety guidelines and handle the heater with care to prevent damage.

10. How long do ceramic heater rings last?

The lifespan depends on usage conditions, temperature levels, and maintenance. Proper care and regular inspection can extend their operational life.
