Air water tube immersion heater Tubular infrared radiant heater Filling machine factory
- Product Details
The product advantages of Tubular Heater are as follows:
Highly efficient heat transfer: Tubular heaters are insulated with magnesium, which has excellent heat transfer performance and can quickly and evenly transfer heat to the medium being heated.
Strong durability: the use of Incoloy alloy, stainless steel or copper and other high-quality sheath materials, with good corrosion resistance and oxidation resistance, to ensure that the heater in harsh environments, long life use.
Flexible design: the heating element can be customised into a variety of shapes and sizes according to customer requirements, suitable for a variety of heating occasions, including the heating of liquids, air and gas.
Multiple application scenarios: Tubular heaters can be used in a wide range of industrial applications, such as plastics processing machinery, packaging machinery, engineering equipment, casting equipment and hot runner mould systems, etc., and are widely applicable.
Easy to install: Tubular heaters are designed for easy integration into existing equipment and are available in a variety of end connection styles for easy installation and maintenance.
High Reliability: Through precise manufacturing processes and quality material selection, tubular heaters are able to maintain consistent performance over extended periods of operation, reducing downtime and maintenance costs.
Industry-specific attributes
Type
Air Heater
Power Source
Electric
Voltage
36V DC 12V 120V 380v 220V DC 24V AC 110V
Other attributes
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Place of Origin
Jiangsu, China
Weight
5 KG
Warranty
6 Months
Material
Stainless steel
Key Selling Points
High-accuracy
Condition
New
Brand Name
DZX
Dimension(L*W*H)
Customized
Working Temperature Range
0 - 800 ℃
Warranty of core components
6 Months
Core Components
Pressure vessel, Other
Machinery Test Report
Not Available
Video outgoing-inspection
Provided
Size
Customized
Certificate
ISO
MOQ
10 pcs
Delivery Time
7-10 Days
Material
316 304 Copper
Application
Air Heating
Voltages available
220V 380V
Power
Customized 30W-3000W
Advantage
High Speed Heating
Shape
Customers' Designs
Packaging and delivery
Selling Units:
Single item
Single package size:
5X5X5 cm
Single gross weight:
15.000 kg

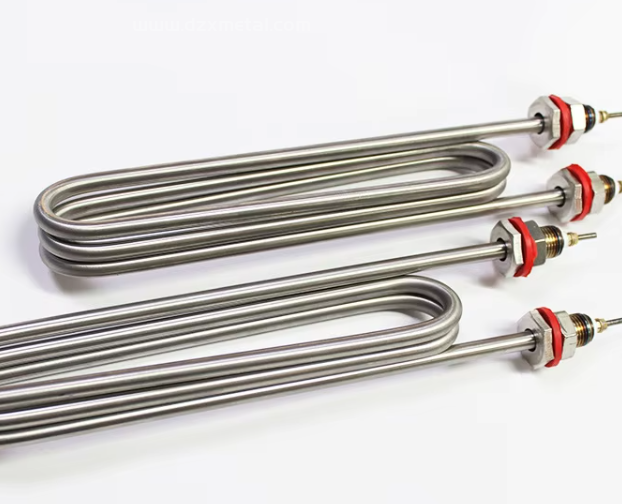

A number of heating pipes are welded or screwed to a flange to form a high-power electric heat pipe that can be disassembled as a whole. It is often used in large water tanks, boilers, heat conduction oil furnaces and other heating places In the raw material, choose SUS304 or SUS316 thickened stainless steel, high temperature resistance wire and high temperature insulation. Designed to reduce the heating tube surface load, can be heated in water and oil.
Electric heating tubular heater

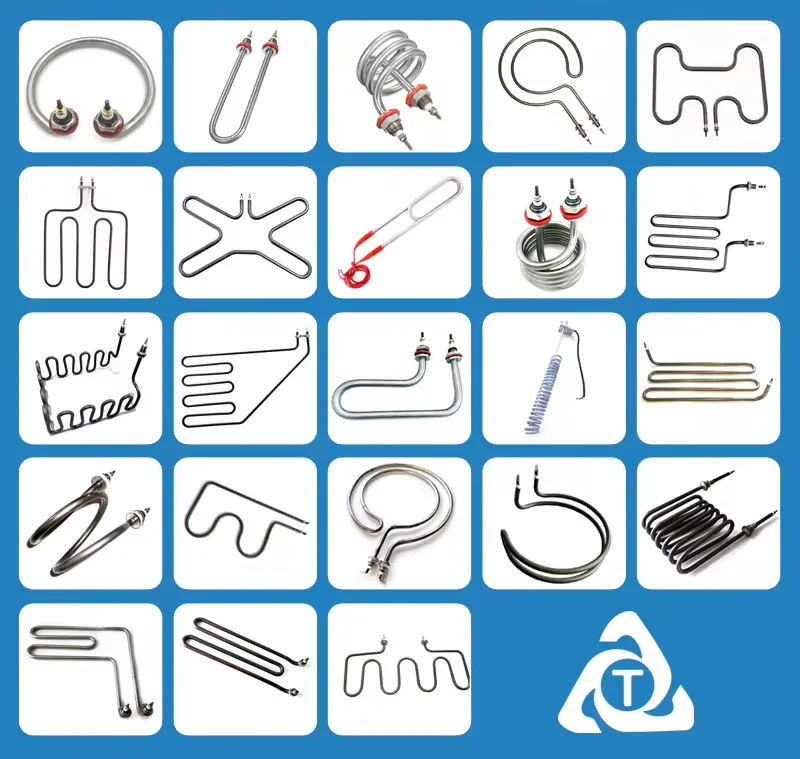

heating element are custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases. Tubular heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available.
Insulation of Magnesium offers greater heat transfer. Tubular heaters can be used in any application. Straight tubular can be inserted in machined groves for conductive heat transfer and formed Tubular provides consistent heat in any type of special application. Its applications areas are: Plastic processing machineries ;Engineering Industry ;Packaging machinery ;Shoe making machineries ;Foundry Equipment ;Radiant Surface heating ;Hot Runner Mould Systems etc.

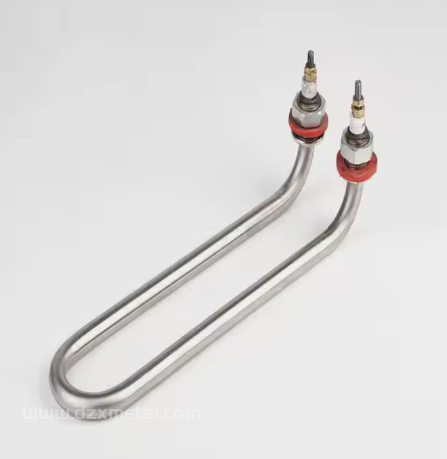

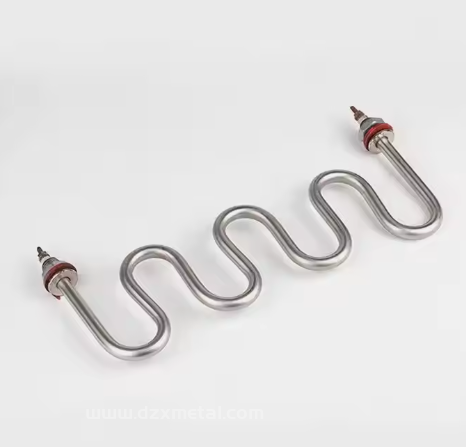

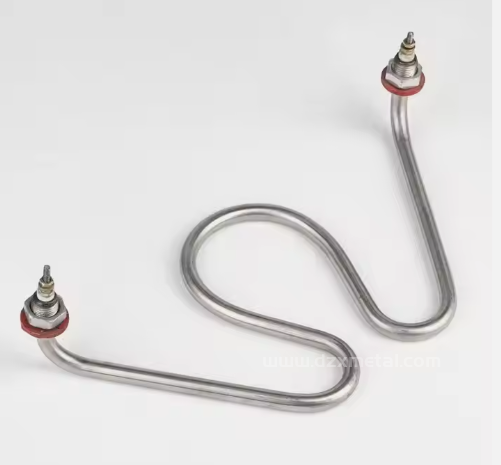

Product Name | 230v 350w 400w 500w 800w 1000w U W I shape Industrial electric rod immersion water heating element tubular tube heater |
Heating wire | Precision helical wound nickel-chrome resistance wire |
Certification | ISO9001, CE |
Insulation Material | High purity magnesium oxide powder compacted |
Voltage | 120V, 240V, 480V, 600V and so on |
Power | 50-2000W, or customized |
Tube Diameter | 6MM 8MM 10MM 12MM 14MM 16MM 18MM 20MM |
Thread size | M12 M14 M16 M18 M20 M22 |
Tube Material | Copper ,Steel,Incoloy,Titanium |
How to Choose The right Material for the tubular heaters? Please check this table. | |
Material | Maximum Sheath Temperature |
Copper | 350℉(170℃) Application: Water, Oil, Grease |
Steel | 750℉(400℃) Application: Alkaline cleaning solutions, Tars, Asphalt or air heating |
Stainless Steel | 1200℉(600℃) Application: Corrosive liquids, food processing equipment, Radiant heating |
Incoloy | 1500℉(815℃) Application: Cleaning and degreasing solutions, Corrosive liquids |
Tube Diameter | 6MM 8MM 10MM 12MM 14MM 16MM 18MM 20MM |
Thread size | M12 M14 M16 M18 M20 M22 |
Tube Material | Copper ,Steel,Incoloy,Titanium |
Application | Sheath Material |
Water, Freeze protection, Hotwater storage, Boilerandwaterheaters, Coolingtowers, Solution not corrosive to copper, Food equipment | Stainless Steel304 316L or Copper |
Oil, Heavy and non-circulated oils, Solution water, Corrosive solutions, Steam super heating | Stainless Steel 316L 310s or Incoloy |
Light oils , In forced oil circulation loops | Stainless Steel304 316L |
Light oils , In forced oil circulation loops | Stainless Steel 316L 310s or Incoloy |
Process water, Soap and detergent solutions, Soluble cutting oils, Demineralized or deionized water | Stainless Steel304 316L |
Fluid heat transfer media, Tar, High to low viscosity petroleum oils, Asphalt, Wax, Paraffin, Degreasing solvents, Alcohol, Molten salt, Solutions not corrosive to steel | Stainless Steel304 316L |
