High Watt 12V 1000W Cartridge Heater With K Type Thermocouple And Screw Connection

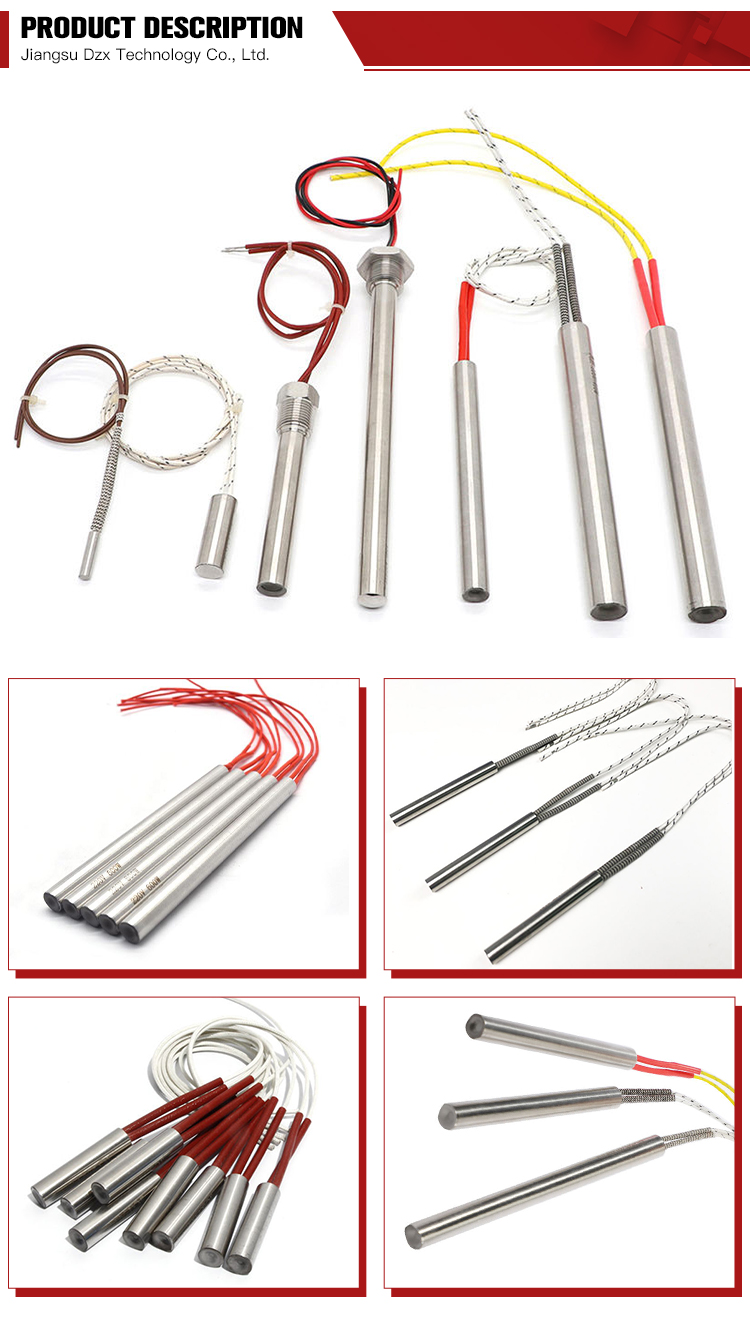

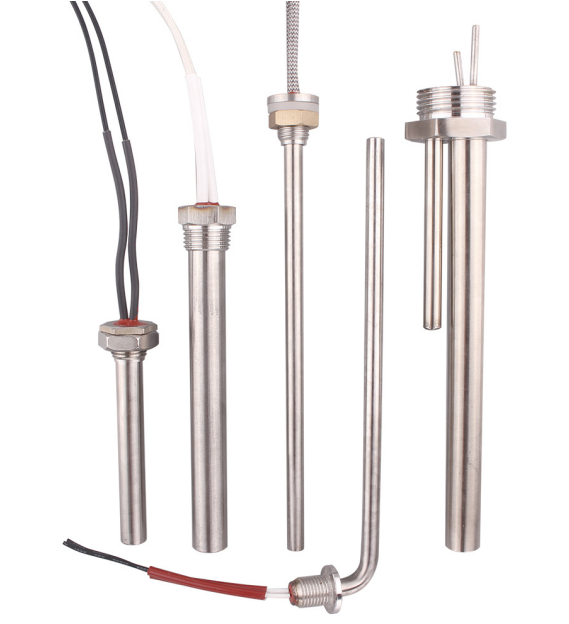

Cartridge Heater s With K Type Thermocouple And Screw Connection

Cartridge heaters are a type of heating element designed to provide efficient and direct heating. They consist of a cylindrical metal sheath that houses a resistive heating coil, insulated with materials like magnesium oxide. This design allows for uniform heat distribution, making cartridge heaters suitable for various applications.

Why Add a J-Type K-Type Thermocouple to Cartridge Heaters

1. Precise Temperature Monitoring

- High Accuracy: K-type thermocouples provide high-precision temperature measurements, ensuring more accurate temperature control during the heating process.

- Real-Time Feedback: The thermocouple can monitor temperature changes in real-time, providing timely feedback to the control system for adjustments.

2. Fast Response

- Quick Reaction: K-type thermocouples have a fast response time, allowing them to quickly detect temperature changes, making them suitable for applications requiring rapid adjustments.

3. Wide Temperature Range

- Versatility: K-type thermocouples operate effectively over a temperature range of -200°C to 1260°C, making them suitable for high-temperature environments and meeting various industrial needs.

4. Enhanced Safety

- Overheat Prevention: By monitoring temperature in real-time, potential overheating can be detected promptly, preventing equipment damage or safety incidents and enhancing operational safety.

5. Automation Control

- Integration with Control Systems: K-type thermocouples can be integrated with temperature control systems to achieve automated temperature regulation, reducing the need for manual intervention and improving production efficiency.

6. Reliability

- Durability: K-type thermocouples are made from high-temperature resistant materials, allowing them to operate stably in harsh environments, reducing failure rates and extending service life.

7. Cost-Effectiveness

- Reduced Maintenance Costs: Accurate temperature monitoring and control help minimize failures and damage caused by overheating, thereby lowering maintenance and replacement costs.

Conclusion

Adding a K-type thermocouple to cartridge heaters significantly enhances the accuracy and response speed of temperature monitoring, improves safety and reliability, and accommodates a wide range of industrial applications. Therefore, K-type thermocouples have become an indispensable component in many heating devices.

Cartridge Heaters Characteristics:

1. Compact Design:

   - Cartridge heaters typically have a cylindrical shape, with length and diameter customizable according to requirements. This compact design allows for easy integration into various devices and systems, saving space.

2. Efficient Heating:

   - Made with high thermal conductivity metal shells and quality insulation materials (such as magnesium oxide), they ensure uniform heating and rapid temperature rise. Their design allows for quick attainment of desired temperatures, enhancing production efficiency.

3. Variety of Specifications:

   - Cartridge heaters come in a wide range of power levels (from a few watts to several kilowatts), lengths, and diameters to meet different application needs. Users can select the appropriate model based on specific heating requirements.

4. High-Temperature Resistance:

   - These heating elements can withstand temperatures of up to 800°C (or higher), making them suitable for use in extreme conditions, widely applied in high-temperature industrial processes.

5. Reliability:

   - Crafted from high-quality materials with precision manufacturing processes, cartridge heaters exhibit high durability and reliability, capable of operating stably in harsh environments and reducing failure rates.

6. Water and Dust Resistance:

   - Certain models feature water and dust resistance, making them suitable for use in humid or dusty environments, further enhancing their applicability.

Cartridge Heaters Advantages:

1. High Energy Efficiency:

   - The design of cartridge heaters allows for rapid heating while minimizing heat loss, reducing energy consumption and improving overall efficiency, thus lowering operational costs.

2. Strong Adaptability:

   - With a diverse range of specifications and material choices, cartridge heaters can be widely used in industries such as plastics processing, chemicals, food processing, and medical equipment, meeting various heating needs.

3. Easy Installation:

   - The installation of these heating elements is typically straightforward, equipped with standardized interfaces, allowing users to easily integrate them into existing systems and reducing installation time and costs.

4. Precise Temperature Control

   - Cartridge heaters can be combined with various temperature controllers, sensors, and control systems to achieve precise temperature control, ensuring product quality and process stability.

5. Reduced Heat Loss:

   - High-quality insulation materials and design effectively minimize heat loss, making the heating process more efficient and extending the lifespan of the equipment.

6. Safety:

   - The design incorporates multiple safety features, including overheat protection and short-circuit protection, ensuring safe and reliable operation during use, preventing accidents.

7. Easy Maintenance:

   - The simple structure of cartridge heaters allows for easy cleaning and maintenance, enabling users to conduct routine inspections and necessary replacements without difficulty, reducing maintenance costs.

8. Cost-Effectiveness:

   - Although initial investments may be higher, their efficiency and long lifespan lead to lower overall operational costs, providing a good return on investment over time.

These detailed characteristics and advantages make cartridge heaters an ideal heating solution in various industrial applications, capable of meeting diverse heating needs.

About DZX TECH Company

Jiangsu DZX Technology Co,Ltd. is a professional engaged in the electric heater design, manufacture and sales of integrated entity enterprise, has over 20 years experience in electric heater of scientific research and production.

Our main product is heating resistance wire. heater elements and thermocouple series products

Enterprise has core technology advantage and introduce advanced technology and management concept, in accordance with the 1s09001 quality management requirements, strict control of raw materials quality,perfect detection means, with first-class technology,reliable quality and excellent service to win customers praise and praise.

FAQ

Q 1. What is a Cartridge Heater?

A cartridge heater is a cylindrical heating element that is typically inserted into a metal block or other material to provide localized heating.

Q 2. How does a Cartridge Heater work?

It generates heat by passing electrical current through a heating element, transferring that heat to the surrounding material.

Q 3. What are common applications?

- Plastic molding

- Packaging machinery

- Food processing

- Medical equipment

- Semiconductor manufacturing

Q 4. What materials are Cartridge Heaters made from?

They are usually made from high-quality stainless steel or other high-temperature resistant materials.

Q 5. What is the temperature range?

Cartridge heaters typically operate in a temperature range from -200°C to over 800°C.

Q 6. How do I choose the right Cartridge Heater?

Consider the following factors:

- Required wattage and voltage

- Desired temperature range

- Size and dimensions

- Application requirements

Q 7. What is a K-type thermocouple, and why is it used with Cartridge Heaters?

A K-type thermocouple is a temperature sensor with a wide measurement range. It is used with cartridge heaters for precise temperature monitoring and control.

Q 8. How do I install a Cartridge Heater?

1. Ensure the power is off.

2. Clean the mounting hole.

3. Apply thermal paste if needed.

4. Insert the cartridge heater.

5. Secure it and connect the electrical wiring.

6. Test the installation.

Q 9. How do I maintain Cartridge Heaters?

- Regularly inspect for wear or damage.

- Keep the heating area clean.

- Ensure proper electrical connections.

- Follow the manufacturer's maintenance guidelines.

Q 10. What should I do if my Cartridge Heater is not heating properly?

Check:

- Electrical connections and power supply.

- For any physical damage.

- If it is installed correctly.

- Consult the manufacturer's troubleshooting guide.
