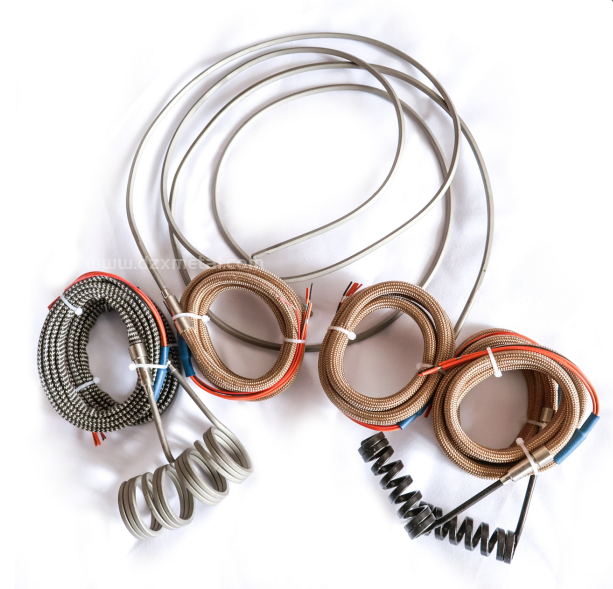

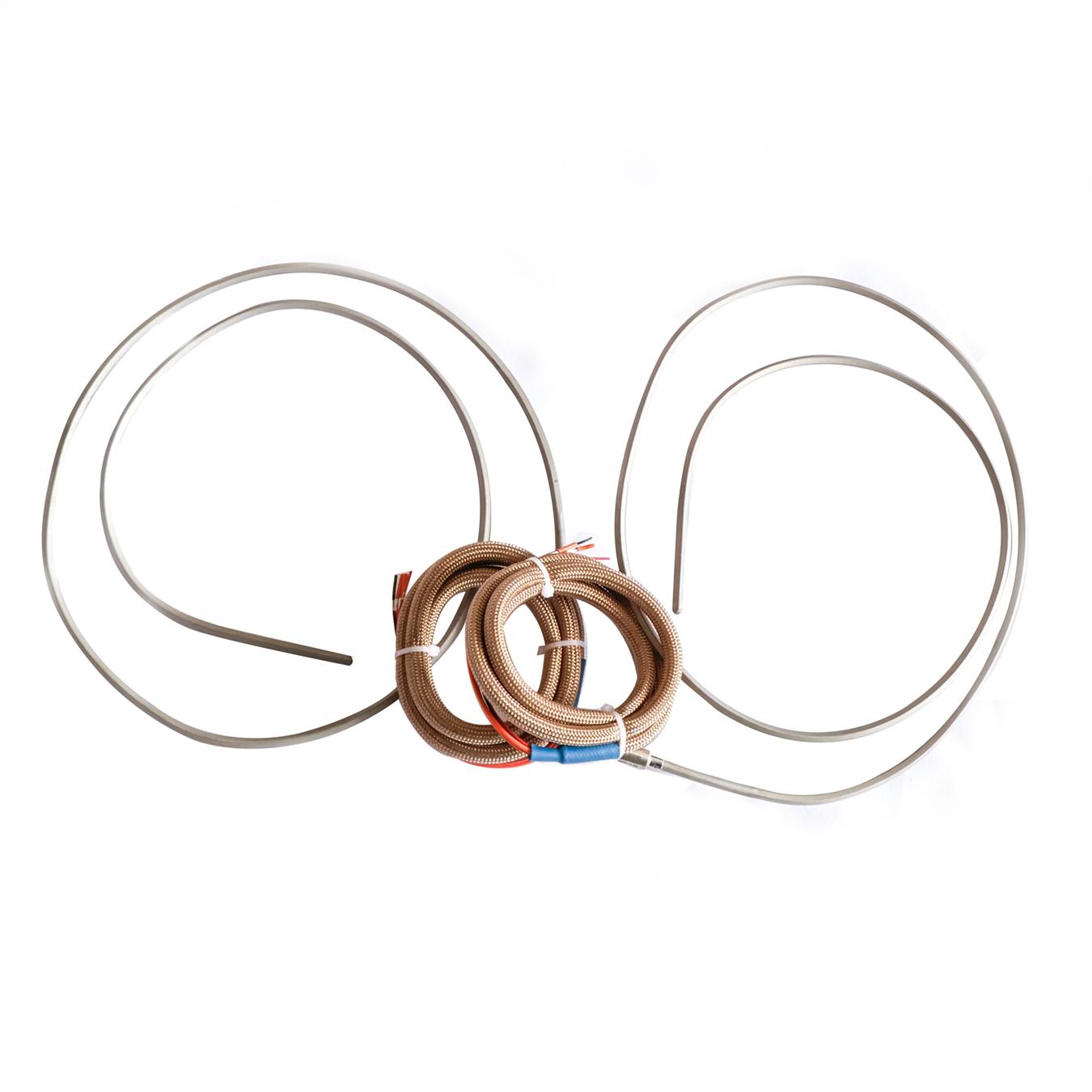

Stainless Steel Round and Flat Heating Tube Hot Runner Coil Heater Element with K Type Thermocouple

Stainless Steel Round and Flat Heating Tube Hot Runner Coil Heater Element with K-Type and J-Type Thermocouples

This heater combines stainless steel construction with integrated temperature sensing using both K-type and J-type thermocouples. It is used in hot runner systems for injection molding, providing precise heating and temperature control.

Features of  Hot Runner Coil Heater

Material:

Stainless Steel: Ensures durability, resistance to corrosion, and ability to withstand high temperatures.

Copper Tube: Low resistance, high temperature resistance, large heating area

Design: Round and Flat Tubes

Round Tubes: Ideal for cylindrical applications or spaces where a round shape fits best.

Flat Tubes: Suitable for applications requiring a flat profile or where space is limited.

Heating Element:

Coil Heater: Features a coiled wire or ribbon inside the stainless steel tube, which heats up when electrical current passes through it.

Thermocouples:

K-Type Thermocouple:

Material: Typically made of Chromel and Alumel.

Temperature Range: Suitable for a wide range of temperatures, usually from -200°C to +1372°C (-328°F to +2501°F).

Usage: Provides accurate temperature measurement and is widely used in industrial applications.

J-Type Thermocouple:

Material: Made of Iron and Constantan.

Temperature Range: Suitable for temperatures from -40°C to +750°C (-40°F to +1382°F).

Usage: Often used for lower temperature applications where the range of the K-type is not required.

Choosing Between K-Type and J-Type Thermocouples

K-Type: Preferred for a wider temperature range and more versatility in industrial settings.

J-Type: Suitable for lower temperature ranges and specific applications where the temperature range fits.

Applications of Hot Runner Coil Heater Elements with K-Type and J-Type Thermocouples

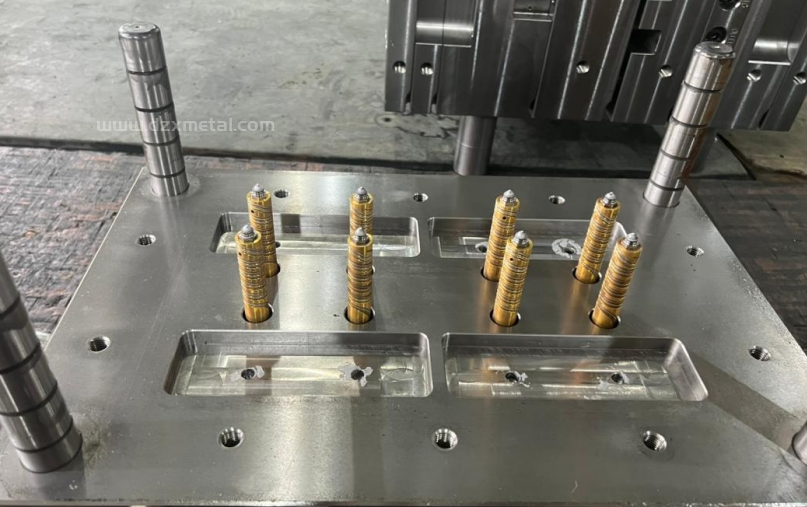

Injection Molding

   Purpose: Maintains consistent temperature in the hot runner system to ensure smooth plastic flow and high-quality molded parts.

   Example: Used in molds for automotive components, consumer electronics, and medical devices.

Plastic Extrusion

   Purpose: Keeps plastic at the correct temperature during extrusion to ensure uniformity and proper material flow.

   Example: Applied in the production of plastic sheets, pipes, and profiles.

Blow Molding

   Purpose: Provides precise heating for molds used in blow molding processes to create hollow plastic parts.

   Example: Used in making bottles, containers, and other hollow plastic products.

Die Casting

   Purpose: Ensures accurate temperature control in die-casting molds, which is crucial for producing high-quality metal castings.

   Example: Applied in the production of automotive parts, machinery components, and consumer goods.

Thermoforming

   Purpose: Maintains proper heating of the mold during the thermoforming process to shape plastic sheets into desired forms.

   Example: Used in creating packaging materials, trays, and various plastic containers.

General Industrial Heating:

   Purpose: Provides precise temperature control for various industrial heating applications where accurate and stable heating is required.

   Example: Used in manufacturing processes like metal heating, curing, and other applications requiring controlled heating.

Research and Development

   Purpose: Supports R&D activities that involve temperature-sensitive processes and material testing.

   Example: Applied in labs and pilot plants for developing new materials and processes.

About DZX

Jiangsu DZX Technology Co,Ltd. is a professional engaged in the electric heater design, manufacture and sales of integrated entity enterprise, has over 20 years experience in electric heater of scientific research and production.

Our main product is heating resistance wire. heater elements( Cartridge Heater ; Ceramic Band Heater; MICA Band Heater ; Tubular Heater; Immersion Heater ; Flange Heater; Water Heater etc) and thermocouple series products

Enterprise has core technology advantage and introduce advanced technology and management concept, in accordance with the 1s09001 quality management requirements, strict control of raw materials quality,perfect detection means, with first-class technology,reliable quality and excellent service to win customers praise and praise.

FAQ

Can I customize the size and specifications of the heaters?

• Yes, we offer customization options to meet specific size, wattage, and design requirements. Contact us with your specifications for a tailored solution.

Do you offer technical support or customer service?

• Yes, we provide technical support and customer service to assist with installation, maintenance, and troubleshooting. Reach out to our support team via phone, email, or our website.

What is the lead time for orders?

• Lead times vary based on product customization and stock availability. Contact us for current lead times and to place an order.

Can I request a sample before placing a bulk order?

• Yes, we offer samples for evaluation. Please contact our sales team to request a sample and discuss your requirements.

How can I place an order?

• Orders can be placed through our website, by phone, or by contacting our sales team directly. Provide your specifications and quantity for a quote.

How can I get a quote for a customized heater?

• Reach out to our sales team with your specifications, and we will provide a quote based on your requirements.
